Exercise 1.

We consider the following syntax-directed definition with nonterminals B and D, terminals 0 and 1 and attributes B.pos, B.val, D.pow and D.val.
Production Semantic Rule
B $ \longmapsto$ DB1 B.pos := B1.pos + 1
  B.val := B1.val + D.val
  D.pow := B1.pos
B $ \longmapsto$ D B.pos := 1
  B.val := D.val
  D.pow := 0
D $ \longmapsto$ 0 D.val := 0
D $ \longmapsto$ 1 D.val := 2D.pow
Is the above syntax-directed definition L-attributed? Give a parse tree for w = 10. Then compute the attributes at each node.

Answer 1
Figure 1: The decorated parse tree for w = 10.
\begin{figure}\centering\includegraphics[scale=.2]{binaryExpansionSDT.eps}
\end{figure}

% latex2html id marker 781
\fbox{
\begin{minipage}{13 cm}

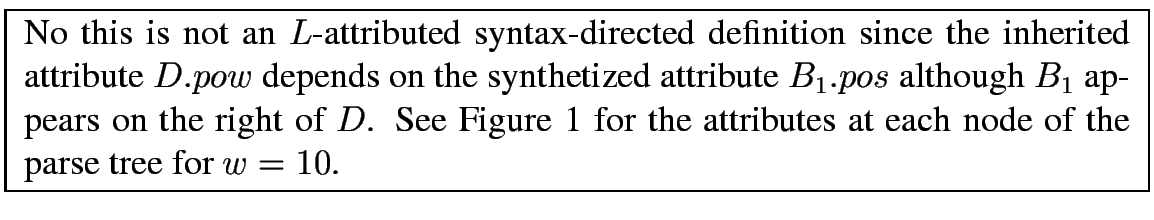

No this is not an $L$-...
...for the attributes
at each node of the parse tree for $w = 10$.
\end{minipage}}
